Change node highlight shape

GoJS
1

how to change node highlight shape while creating link between two nodes.

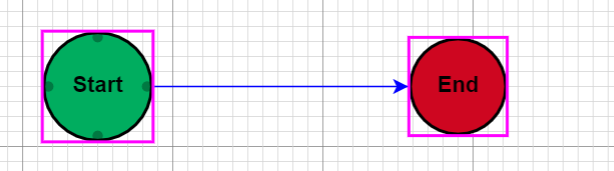

As in the image we can see the node is circular but the highlight shape is rectangle . I want to change this rectangle shape to circular . While creating link betwwen two nodes.

2

You could set a portTargeted function to set the temporaryFromPort or temporaryToPort to match the figure of the targeted port.

myDiagram.toolManager.linkingTool.portTargeted = function(realnode, realport, tempnode, tempport, toend) {
  if (realport === null) {
    tempport.figure = "Square";
  } else {
    tempport.figure = realport.figure;
  }
}

You probably want to do the same for the RelinkingTool, if your app supports relinking.

3

Thanks. Works well.
