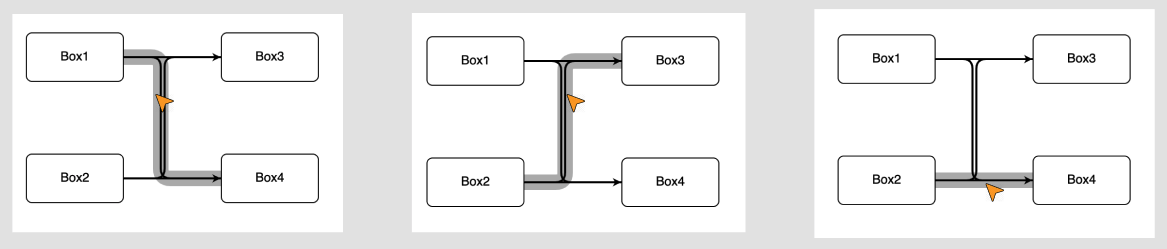

The figure below shows 4 boxes in two columns and the boxes between columns are fully connected. When hovering over certain link, the link should be highlighted. I am using a yellow triangle to indicate the location of the cursor.

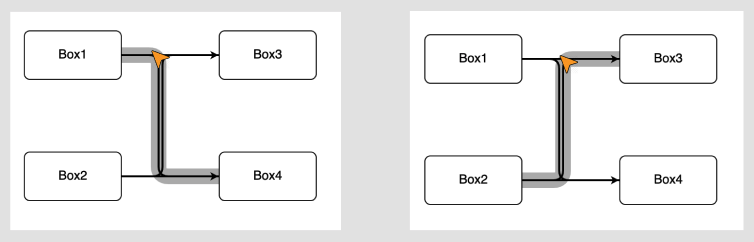

Unfortunately, the link from Box1 to Box3 has the lowest zOrder and therefore it can never be highlighted, as illustrated below.
I am wondering if the following design idea is possible using GoJS: when a cursor is hovering over multiple links that are overlapped, detect all the covered links at the cursor’s location so that a row of colored dots can be displayed for users to click to highlight the corresponding link.
The example here is the over-simplified version of the issue that we are facing. So, the fundamental question is if there is a way for GoJS to find all the links (or even parts) at certain document position? Any idea will be really appreciated!
Below is the HTML + JS code to illustrate the issue mentioned in this post. Thanks for your time!
