GOJS Avoid Overlapping of links in tree Layout

sidhartharaj · January 23, 2018, 2:24pm

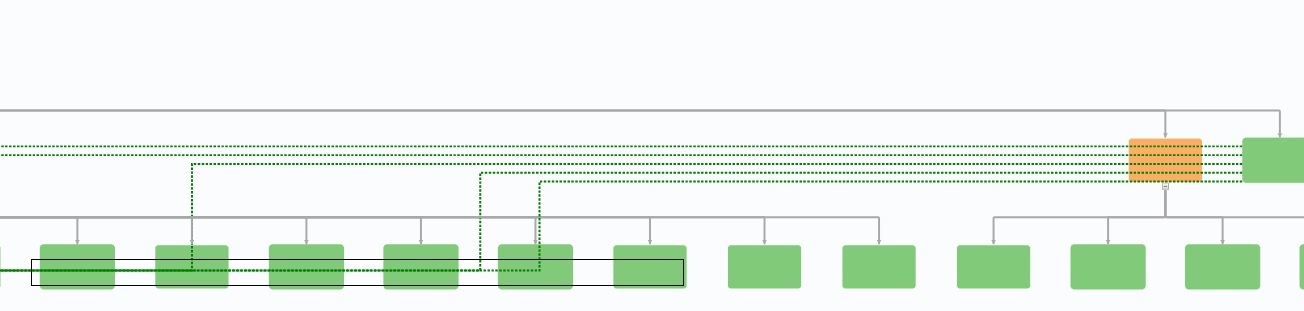

How to avoid links overlapping in Tree layout:

Can you please give some examples.

Thank you

walter · January 23, 2018, 2:55pm

That’s not a tree-structured graph. I don’t think TreeLayout is responsible for routing Links that are not Link.isTreeLink.

sidhartharaj · January 23, 2018, 4:57pm

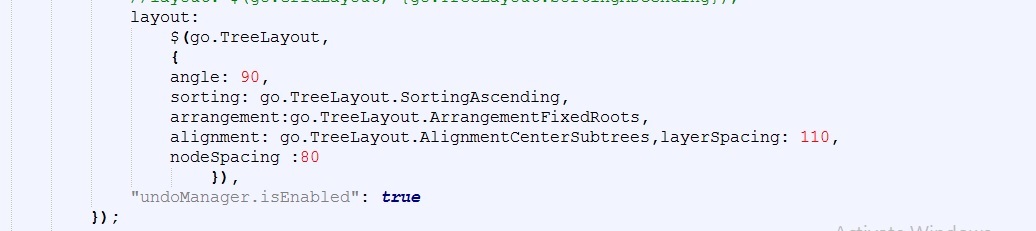

Actually,i am using following code for layout and link properties,

Is there any thing need to be added.

walter · January 23, 2018, 5:10pm

Using AvoidsNodes routing will preclude any automatic separation of link routes. Sorry.

You might have some luck if you used Orthogonal routing, but that would still require either some special settings on the Links or more likely some custom routing behavior, either with overrides of Link methods or special routing in TreeLayout.commitLinks.

sidhartharaj · January 24, 2018, 3:16am

Hi,
can you please suggest some example methods to handle this commitLinks.

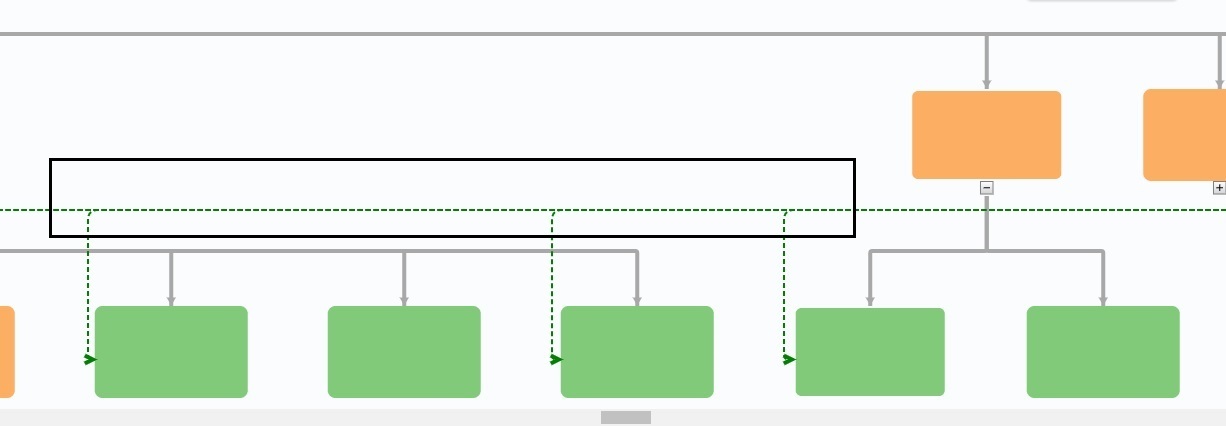

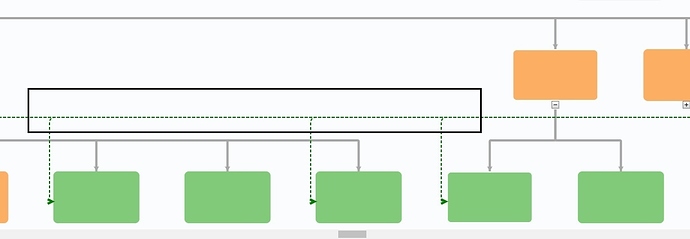

when i try to set orthogonal property…am getting the follwing ans…

walter · January 24, 2018, 3:28am

You might want to set the fromSpot to be go.Spot.BottomSide and the toSpot to be go.Spot.TopSide.
