Thanks for the Reply Walter.
Issue:

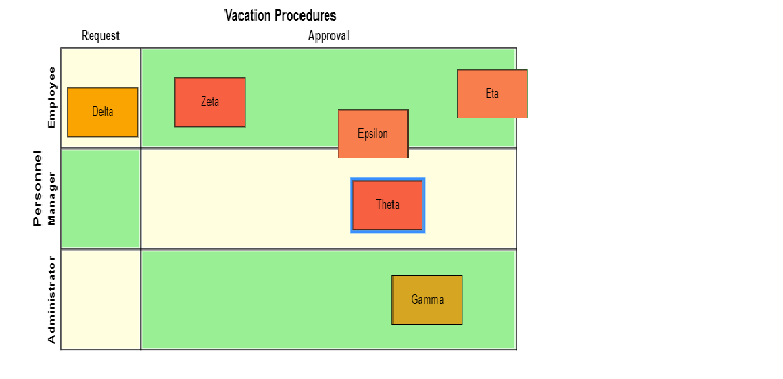

I can drag the node and can put on the right side borders.
I am using the sample code from GOJS only (it is not my application). Pasting my whole code for your reference.

Sample code from GOJS:
// define a custom ResizingTool to limit how far one can shrink a row or column
function LaneResizingTool() {
go.ResizingTool.call(this);
}
go.Diagram.inherit(LaneResizingTool, go.ResizingTool);
/** @override */
LaneResizingTool.prototype.computeMinSize = function() {
var diagram = this.diagram;
var lane = this.adornedObject.part; // might be row or column
var horiz = (lane.category === "Column Header"); // or "Row Header"
var margin = diagram.nodeTemplate.margin;
var bounds = new go.Rect();
diagram.findTopLevelGroups().each(function(g) {
if (horiz ? (g.column === lane.column) : (g.row === lane.row)) {
var b = diagram.computePartsBounds(g.memberParts);
if (b.isEmpty()) return; // nothing in there? ignore it
b.unionPoint(g.location); // keep any empty space on the left and top
b.addMargin(margin); // assume the same node margin applies to all nodes
if (bounds.isEmpty()) {
bounds = b;
} else {
bounds.unionRect(b);
}
}
});
// limit the result by the standard value of computeMinSize
var msz = go.ResizingTool.prototype.computeMinSize.call(this);
if (bounds.isEmpty()) return msz;
return new go.Size(Math.max(msz.width, bounds.width), Math.max(msz.height, bounds.height));
};
/** @override */
LaneResizingTool.prototype.resize = function(newr) {
var lane = this.adornedObject.part;
var horiz = (lane.category === "Column Header");
var lay = this.diagram.layout; // the TableLayout
if (horiz) {
var col = lane.column;
var coldef = lay.getColumnDefinition(col);
coldef.width = newr.width;
} else {
var row = lane.row;
var rowdef = lay.getRowDefinition(row);
rowdef.height = newr.height;
}
lay.invalidateLayout();
};
// end LaneResizingTool class
function init() {
if (window.goSamples) goSamples(); // init for these samples -- you don't need to call this
var $ = go.GraphObject.make;
myDiagram =
$(go.Diagram, "myDiagramDiv",
{
initialContentAlignment: go.Spot.Center,
layout: $(TableLayout,
$(go.RowColumnDefinition, { row: 1, height: 22 }), // fixed size column headers
$(go.RowColumnDefinition, { column: 1, width: 22 }) // fixed size row headers
),
"SelectionMoved": function(e) { e.diagram.layoutDiagram(true); },
"resizingTool": new LaneResizingTool(),
allowDrop: true,
// feedback that dropping in the background is not allowed
mouseDragOver: function(e) { e.diagram.currentCursor = "not-allowed"; },
// when dropped in the background, not on a Node or a Group, cancel the drop
mouseDrop: function(e) { e.diagram.currentTool.doCancel(); },
"animationManager.isInitial": false,
"undoManager.isEnabled": true
});
myDiagram.nodeTemplateMap.add("Header", // an overall table header, at the top
$(go.Part, "Auto",
{
row: 0, column: 1, columnSpan: 9999,
stretch: go.GraphObject.Horizontal,
selectable: false, pickable: false
},
$(go.Shape, { fill: "transparent", strokeWidth: 0 }),
$(go.TextBlock, { alignment: go.Spot.Center, font: "bold 12pt sans-serif" },
new go.Binding("text"))
));
myDiagram.nodeTemplateMap.add("Sider", // an overall table header, on the left side
$(go.Part, "Auto",
{
row: 1, rowSpan: 9999, column: 0,
stretch: go.GraphObject.Vertical,
selectable: false, pickable: false
},
$(go.Shape, { fill: "transparent", strokeWidth: 0 }),
$(go.TextBlock, { alignment: go.Spot.Center, font: "bold 12pt sans-serif", angle: 270 },
new go.Binding("text"))
));
myDiagram.nodeTemplateMap.add("Column Header", // for each column header
$(go.Part, "Spot",
{
row: 1, rowSpan: 9999, column: 2,
minSize: new go.Size(100, NaN),
stretch: go.GraphObject.Fill,
movable: false,
resizable: true,
resizeAdornmentTemplate:
$(go.Adornment, "Spot",
$(go.Placeholder),
$(go.Shape, // for changing the length of a lane
{
alignment: go.Spot.Right,
desiredSize: new go.Size(7, 50),
fill: "lightblue", stroke: "dodgerblue",
cursor: "col-resize"
})
)
},
new go.Binding("column", "col"),
$(go.Shape, { fill: null },
new go.Binding("fill", "color")),
$(go.Panel, "Auto",
{ // this is positioned above the Shape, in row 1
alignment: go.Spot.Top, alignmentFocus: go.Spot.Bottom,
stretch: go.GraphObject.Horizontal,
height: myDiagram.layout.getRowDefinition(1).height
},
$(go.Shape, { fill: "transparent", strokeWidth: 0 }),
$(go.TextBlock,
{
font: "bold 10pt sans-serif", isMultiline: false,
wrap: go.TextBlock.None, overflow: go.TextBlock.OverflowEllipsis
},
new go.Binding("text"))
)
));
myDiagram.nodeTemplateMap.add("Row Sider", // for each row header
$(go.Part, "Spot",
{
row: 2, column: 1, columnSpan: 9999,
minSize: new go.Size(NaN, 100),
stretch: go.GraphObject.Fill,
movable: false,
resizable: true,
resizeAdornmentTemplate:
$(go.Adornment, "Spot",
$(go.Placeholder),
$(go.Shape, // for changing the breadth of a lane
{
alignment: go.Spot.Bottom,
desiredSize: new go.Size(50, 7),
fill: "lightblue", stroke: "dodgerblue",
cursor: "row-resize"
})
)
},
new go.Binding("row"),
$(go.Shape, { fill: null },
new go.Binding("fill", "color")),
$(go.Panel, "Auto",
{ // this is positioned to the left of the Shape, in column 1
alignment: go.Spot.Left, alignmentFocus: go.Spot.Right,
stretch: go.GraphObject.Vertical, angle: 270,
height: myDiagram.layout.getColumnDefinition(1).width
},
$(go.Shape, { fill: "transparent", strokeWidth: 0 }),
$(go.TextBlock,
{
font: "bold 10pt sans-serif", isMultiline: false,
wrap: go.TextBlock.None, overflow: go.TextBlock.OverflowEllipsis
},
new go.Binding("text"))
)
));
myDiagram.nodeTemplate = // for regular nodes within cells (groups); you'll want to extend this
$(go.Node, "Auto",
{ width: 100, height: 50, margin: 4 }, // assume uniform Margin, all around
new go.Binding("row"),
new go.Binding("column", "col"),
$(go.Shape, { fill: "white" },
new go.Binding("fill", "color")),
$(go.TextBlock,
new go.Binding("text", "key"))
);
myDiagram.groupTemplate = // for cells
$(go.Group, "Auto",
{
layerName: "Background",
stretch: go.GraphObject.Fill,
selectable: false,
computesBoundsAfterDrag: true,
computesBoundsIncludingLocation: true,
handlesDragDropForMembers: true, // don't need to define handlers on member Nodes and Links
mouseDragEnter: function(e, group, prev) { group.isHighlighted = true; },
mouseDragLeave: function(e, group, next) { group.isHighlighted = false; },
mouseDrop: function(e, group) {
// if any dropped part wasn't already a member of this group, we'll want to let the group's row
// column allow themselves to be resized automatically, in case the row height or column width
// had been set manually by the LaneResizingTool
var anynew = e.diagram.selection.any(function(p) { return p.containingGroup !== group; });
// Don't allow headers/siders to be dropped
var anyHeadersSiders = e.diagram.selection.any(function(p) {
return p.category === "Column Header" || p.category === "Row Sider";
});
if (!anyHeadersSiders && group.addMembers(e.diagram.selection, true)) {
if (anynew) {
// e.diagram.layout.getRowDefinition(group.row).height = NaN;
// e.diagram.layout.getColumnDefinition(group.column).width = NaN;
}
} else { // failure upon trying to add parts to this group
e.diagram.currentTool.doCancel();
}
}
},
new go.Binding("row"),
new go.Binding("column", "col"),
// the group is normally unseen -- it is completely transparent except when given a color or when highlighted
$(go.Shape,
{
fill: "transparent", stroke: "transparent",
strokeWidth: myDiagram.nodeTemplate.margin.left,
stretch: go.GraphObject.Fill
},
new go.Binding("fill", "color"),
new go.Binding("stroke", "isHighlighted", function(h) { return h ? "red" : "transparent"; }).ofObject()),
$(go.Placeholder,
{ // leave a margin around the member nodes of the group which is the same as the member node margin
alignment: (function(m) { return new go.Spot(0, 0, m.top, m.left); })(myDiagram.nodeTemplate.margin),
padding: (function(m) { return new go.Margin(0, m.right, m.bottom, 0); })(myDiagram.nodeTemplate.margin)
})
);
myDiagram.model = new go.GraphLinksModel([
// headers
{ key: "Header", text: "Vacation Procedures", category: "Header" },
{ key: "Sider", text: "Personnel", category: "Sider" },
// column and row headers
{ key: "Request", text: "Request", col: 2, category: "Column Header" },
{ key: "Approval", text: "Approval", col: 3, category: "Column Header" },
{ key: "Employee", text: "Employee", row: 2, category: "Row Sider" },
{ key: "Manager", text: "Manager", row: 3, category: "Row Sider" },
{ key: "Administrator", text: "Administrator", row: 4, category: "Row Sider" },
// cells, each a group assigned to a row and column
{ key: "EmpReq", row: 2, col: 2, isGroup: true, color: "lightyellow" },
{ key: "EmpApp", row: 2, col: 3, isGroup: true, color: "lightgreen" },
{ key: "ManReq", row: 3, col: 2, isGroup: true, color: "lightgreen" },
{ key: "ManApp", row: 3, col: 3, isGroup: true, color: "lightyellow" },
{ key: "AdmReq", row: 4, col: 2, isGroup: true, color: "lightyellow" },
{ key: "AdmApp", row: 4, col: 3, isGroup: true, color: "lightgreen" },
// nodes, each assigned to a group/cell
{ key: "Delta", color: "orange", size: "100 100", group: "EmpReq" },
{ key: "Epsilon", color: "coral", size: "100 50", group: "EmpReq" },
{ key: "Zeta", color: "tomato", size: "50 70", group: "ManReq" },
{ key: "Eta", color: "coral", size: "50 50", group: "ManApp" },
{ key: "Theta", color: "tomato", size: "100 50", group: "AdmApp" }
]);
myPalette =
$(go.Palette, "myPaletteDiv",
{
nodeTemplateMap: myDiagram.nodeTemplateMap,
"model.nodeDataArray": [
{ key: "Alpha", color: "orange" },
{ key: "Beta", color: "tomato" },
{ key: "Gamma", color: "goldenrod" }
]
});
}
</script>
