Horizontal Line alignment issues inside a group

GoJS
1

Hello,
I’m currently trying to create a shelf using GoJS and I ran into some problems regarding groups and the alignement of shapes within them. I want to align a horizontal line at the starting point/bottom left of the group but as you can see in the picture below the line only aligns either in the center/top or near the bottom with a margin of around 20px to the bottom.

This is the groupTemplate that I use.

export const groupTemplate = new go.Group('Vertical', {
  movable: false,
  selectable: false,
  background: 'gray',
  locationSpot: go.Spot.BottomLeft,
  locationObjectName: 'GROUP',
  defaultAlignment: go.Spot.Bottom,
})
  .add(
    new go.Shape('LineH', {
      strokeWidth: 5,
      stroke: 'blue',
      stretch: go.Stretch.Fill,
      alignment: go.Spot.BottomLeft,
    }),
  )
  .bind('location', 'dimension', dimension => new go.Point(5, -dimension.height))
  .bind('width', 'dimension', dimension => dimension.width - 5)
  .bind('height', 'innerHeight');

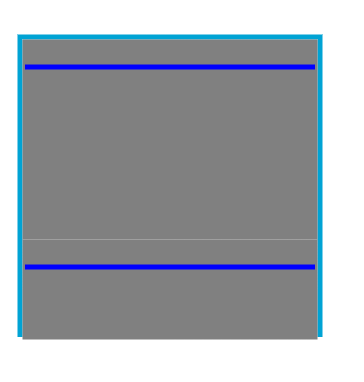

This is what it currently looks like

image364×382 912 Bytes

2

Here’s an example that produces:

image247×127 5.29 KB

You can move one of the two green nodes around and see how the blue line underneath automatically stretches.

<!DOCTYPE html>
<html>
<body>
  <div id="sample">
    <div id="myDiagramDiv" style="border: solid 1px black; width: 100%; height: 550px"></div>
  </div>

  <script src="https://cdn.jsdelivr.net/npm/gojs/release/go-debug.js"></script>
  <script id="code">
myDiagram = new go.Diagram('myDiagramDiv', {
  'undoManager.isEnabled': true // enable undo & redo
});

myDiagram.nodeTemplate =
  new go.Node("Auto")
    .add(
      new go.Shape({ fill: 'lightgreen' }),
      new go.TextBlock({ margin: 8 })
        .bind("text")
    );

myDiagram.groupTemplate =
  new go.Group("Spot")
    .add(
      new go.Placeholder({ padding: 5 }),
      new go.TextBlock({ alignment: go.Spot.Top, alignmentFocus: go.Spot.Bottom, font: "bold 11pt sans-serif" })
        .bind("text"),
      new go.Shape("LineH", { alignment: go.Spot.Bottom, stretch: go.Stretch.Horizontal, height: 0, stroke: "blue" })
    );

myDiagram.model = new go.GraphLinksModel([
  { key: 1, isGroup: true, text: "a group" },
  { key: 2, group: 1, text: "Hello" },
  { key: 3, group: 1, text: "World!" },
], [
  { from: 2, to: 3 }
]);
  </script>
</body>
</html>
