How to achieve Node sharing multiple groups with TableLayout?

GoJS
1

Below is my requirement. Please let me know if there is any possibility to implement.

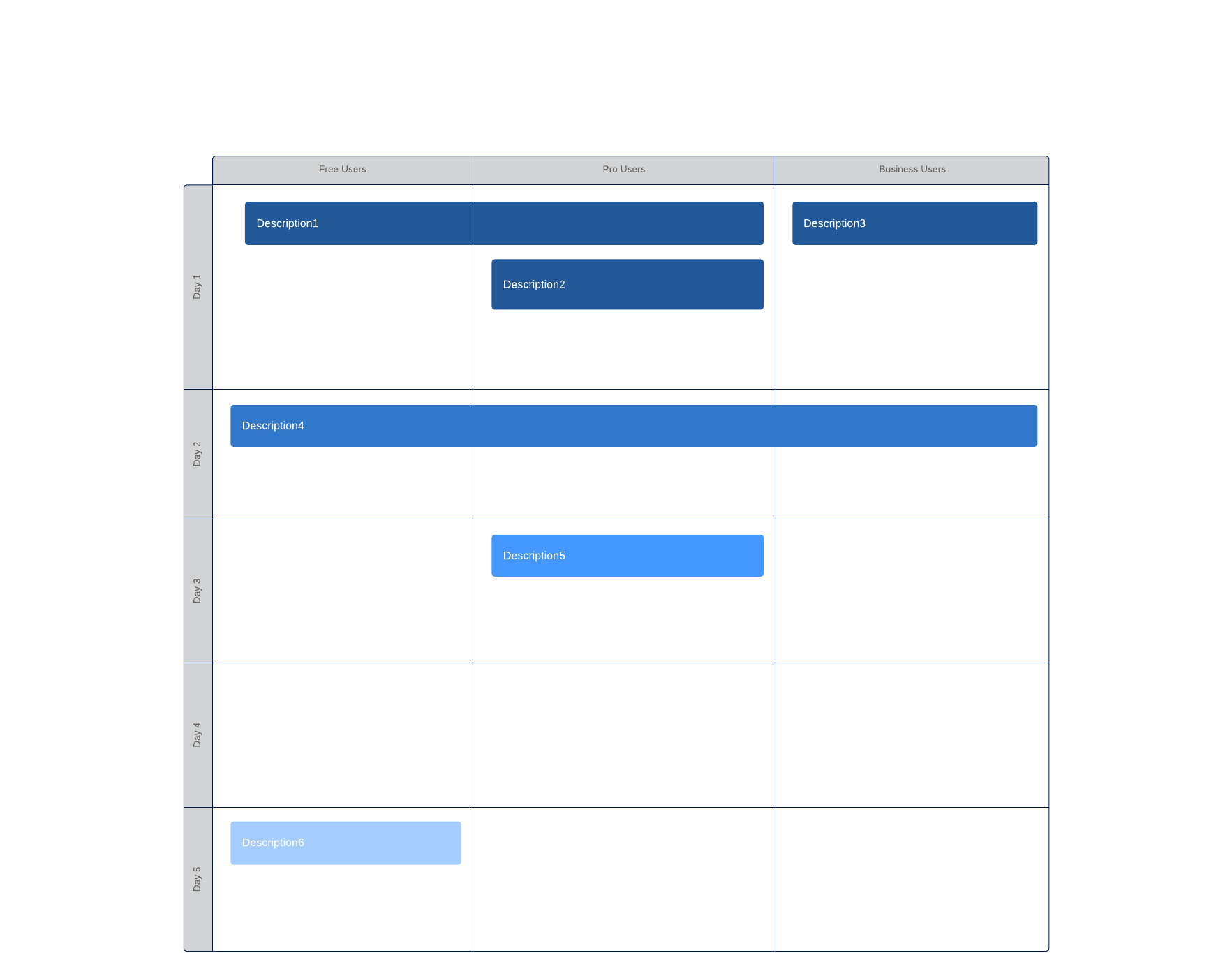

Table%20Layout%20Gojs%20-%20Email%20Flow
Table Layout Gojs - Email Flow.png1765×1365 34.3 KB

Thanks
DastagiriReddy

2

A Node cannot be contained in more than one Group, so the only way to do that is not to use Groups at all. See for example: Shared States

You should be able to set columnSpan (and/or rowSpan, if you want) on each Node. We should create a TableLayout sample that doesn’t use Groups at all.

3

Thanks for your reply.
