How can I draw a multi-color line?
For example, I want to draw a line that has two color, red and blue. the red and blue appear alternately on the line.
By “alternately”, if you mean “red-then-blue-then-red-then-blue-then…”, then you could do something like:
myDiagram.linkTemplate =
$(go.Link,
{ routing: go.Link.AvoidsNodes, corner: 10 },
$(go.Shape, { isPanelMain: true, strokeWidth: 2, strokeDashArray: [5, 5],
stroke: "red" }),
$(go.Shape, { isPanelMain: true, strokeWidth: 2, strokeDashArray: [5, 5],
stroke: "blue", strokeDashOffset: 5 }),
$(go.Shape, { toArrow: "OpenTriangle" })
);

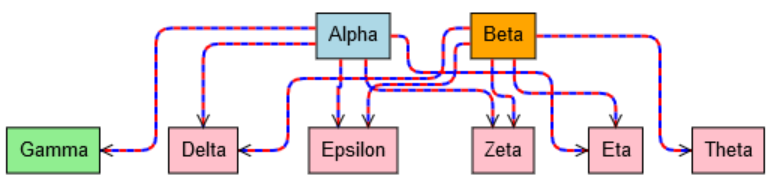

which produces:
Note that the link path consists of two Shapes. That requires setting GraphObject.isPanelMain to true on both of them.
This is what I want. Thanks
