How to re-order the nodes when user drops it on the lane

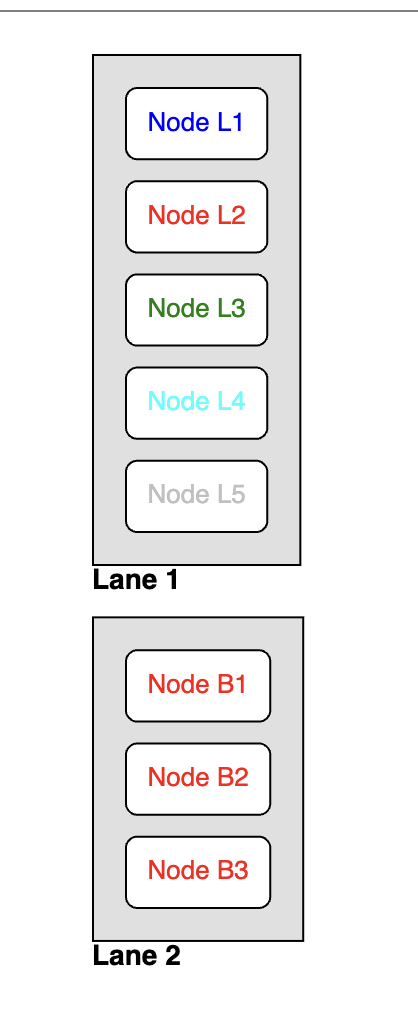

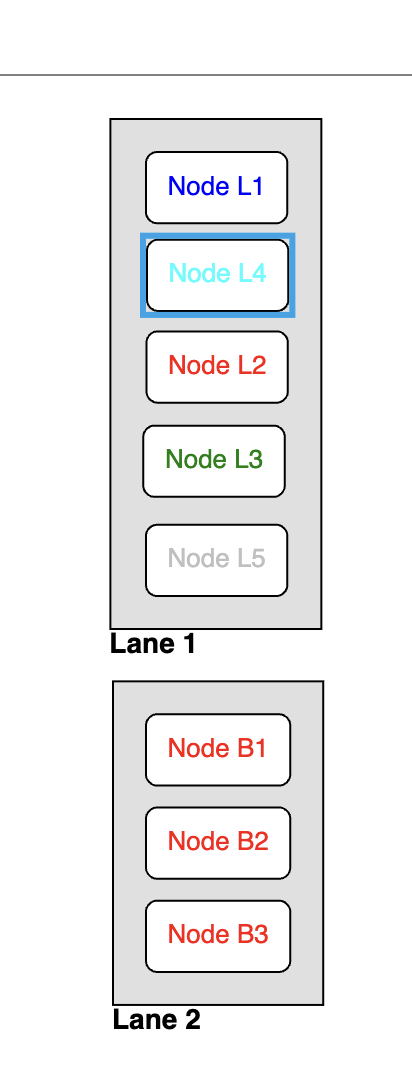

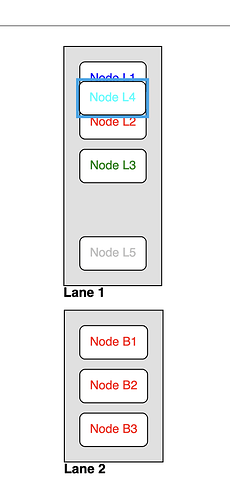

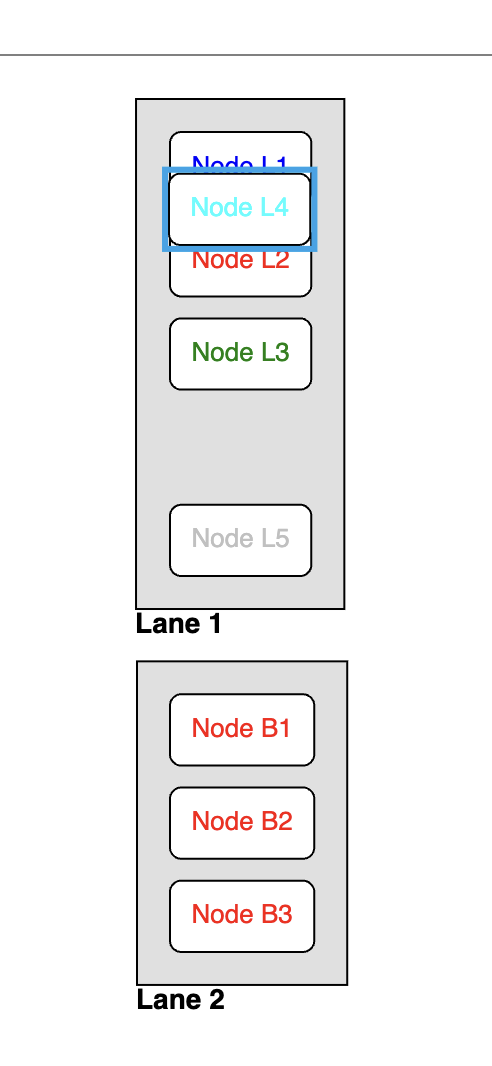

Hi, I wanted to implement the drag and drop of nodes within the lane, and when it’s dropped, the layout should adjust the new node to the desired position and re-render the diagram. Something like this

I think what you want is implemented in the Kanban sample: Interactive Kanban Board Diagram Using Collapsible Groups as Task Lists | GoJS Diagramming Library

It depends on the Group.layout being a GridLayout whose GridLayout.comparer is set to a function that depends on the current Node.location.y value. The code is here:

  myDiagram.groupTemplate =
    new go.Group(. . ., {
      . . .
      layout: new go.GridLayout({
        // automatically lay out the lane's subgraph
        wrappingColumn: 1,
        . . .
        comparer: (a, b) => {
          // can re-order tasks within a lane
          const ay = a.location.y;
          const by = b.location.y;
          if (isNaN(ay) || isNaN(by)) return 0;
          if (ay < by) return -1;
          if (ay > by) return 1;
          return 0;
        }
      }),
      . . .

It also depends on a “SelectionMoved” DiagramEvent listener that invalidates the Group.layout of the nodes that were moved. (And maybe you want it on a “SelectionCopied” listener too, if you allow that.) This is implemented by:

new go.Diagram(. . ., {
    "SelectionMoved": relayoutDiagram,
    . . .

and

    // this is called after nodes have been moved
    function relayoutDiagram() {
      myDiagram.selection.each(n => n.invalidateLayout());
      myDiagram.layoutDiagram();
    }

Thanks Walter, the solution works.
