Is it possible to add gojs diagrams inside the node of another gojs diagram?

GoJS
1

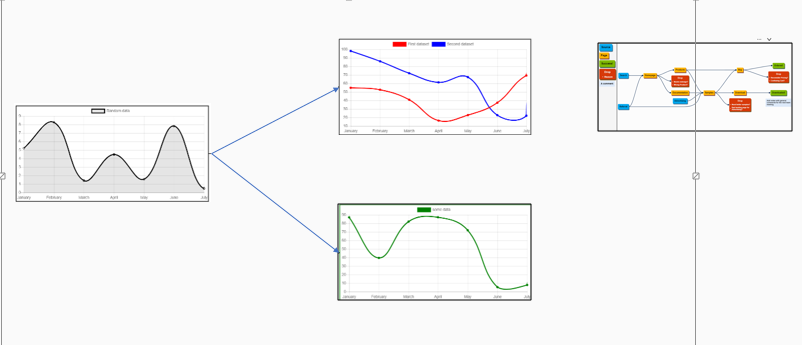

I have a base diagram and want to add another gojs diagram inside the node of my base diagram. Is there any possibility to add? if yes, please share more details.

image802×345 34.3 KB

2

Normally that is achieved by having a Group that holds a subgraph: GoJS SubGraphs -- Northwoods Software

However, you would have to decrease the scale of each of the group’s member parts.
For example: Regrouping Demo with shrinking members

Alternatively, if you don’t want that nested diagram to be interactive, you could just show an image of the Diagram in a Picture. Call Diagram.makeImage or Diagram.makeSvg to produce that image of a separate Div that hosts the nested Diagram.
