Links overlapping with Node - curve: Bezier

GoJS
1

Hi,

I am using GoJs treelayout with GraphLinkModel to create a specific layout. We are facing some issue with link template that we need some help with. I have attached the tree in the jsfiddle link https://jsfiddle.net/02d8q6st/.

There are 2 templates we are checking out:-

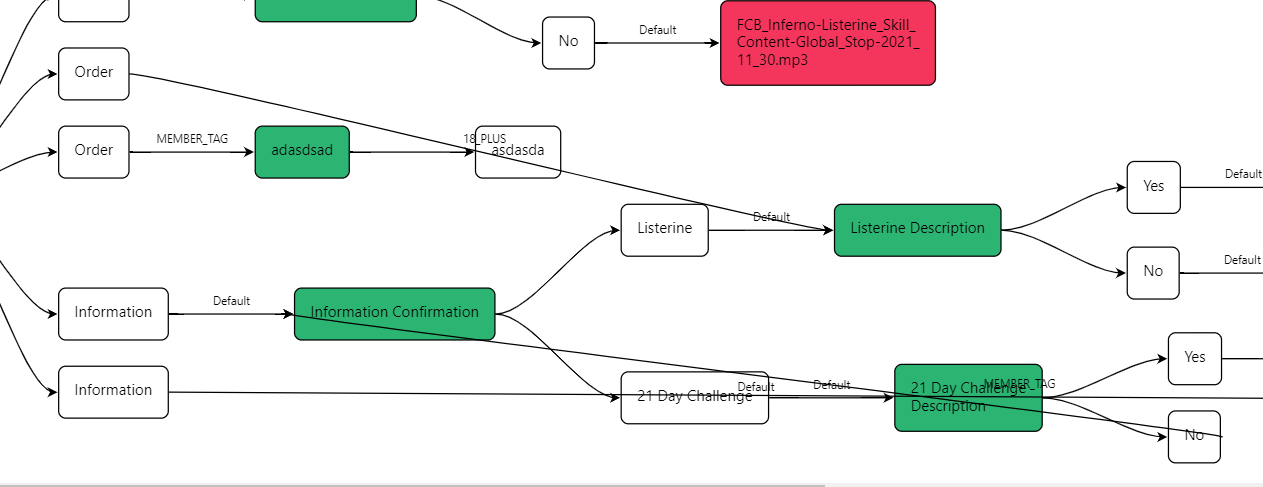

In the first one with curve bezier, we have tried using routing: go.Link.AvoidsNodes but it messes the tree out pretty badly. As you can see in the diagram created the links are getting overlapped

image1263×487 49.4 KB
. And it gives us a better self loop in the required node

In the second template its looks really messy and confusing its basic with routing: go.Link.AvoidsNodes enabled. But the self loop does not like the 1st one and the links are really confusing for consumer

image1261×215 13.8 KB

Is there any way to clear that overlapping with the first link template?

2

Your graph is not tree-structured, so it should not be surprising that the results using TreeLayout involving multiple links coming into a node are not satisfactory. Have you tried setting Diagram.layout to a LayeredDigraphLayout?
