Positioning labels on bezier-links with from/toEndSegmentLength

GoJS
1

Hello,

I’m trying to position labels at the start/end of the link.
Following the Link Labels | GoJS Intro we got it working for almost all scenarios except curved links.

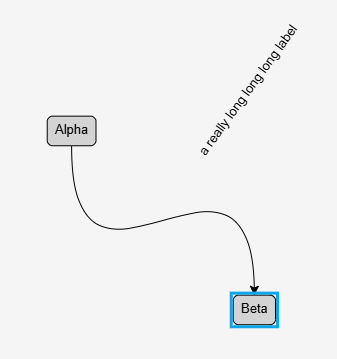

If we use segmentIndex: -2 we get:

image337×359 7.76 KB

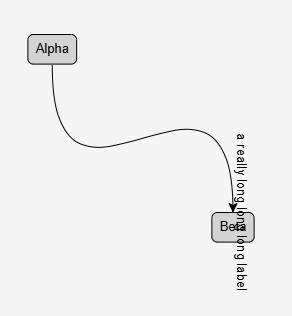

If we use segmentIndex: -1 we get:

image292×316 2.56 KB

We use toSpot and fromSpot and have set the {from|to}EndSegmentLength to get more curvy bezier curves.

I’m not sure how we can achieve a label at the end of link which isn’t longer than the link (segmentIndex: -1) or somewhere off in the distance (segmentIndex: -2).

Before I try to build a (more complex) solution, maybe there is an obvious solution I haven’t considered.

There is a short html example below, where I tried to pinpoint the problem we’re having.

Cheers
Niklas

Example Code:

<!DOCTYPE html>
<html lang="en">

<body>
  <script src="https://cdn.jsdelivr.net/npm/[email protected]/release/go.js"></script>
  <link href="https://cdnjs.cloudflare.com/ajax/libs/prism/1.29.0/themes/prism.min.css" rel="stylesheet" />
  <script src="https://cdnjs.cloudflare.com/ajax/libs/prism/1.29.0/prism.min.js"></script>

  <div id="allSampleContent" class="p-4 w-full">
    <script id="code">
      function init() {
        diagram = new go.Diagram('myDiagramDiv', {

        });

        diagram.nodeTemplate =
          new go.Node("Auto")
            .bind("location", "loc", go.Point.parse)
            .add(
              new go.Shape("RoundedRectangle", { fill: "lightgray", portId: "", toSpot: go.Spot.TopCenter, fromSpot: go.Spot.BottomCenter }),
              new go.TextBlock({ margin: 5 })
                .bind("text", "key")
            );

        diagram.linkTemplate =
          new go.Link({ curve: go.Link.Bezier, fromEndSegmentLength: 200, toEndSegmentLength: 200 })
            .add(
              new go.Shape(),                           // this is the link shape (the line)
              new go.Shape({ toArrow: "Standard" }),  // this is an arrowhead
              new go.TextBlock({
                segmentIndex: -2,
                segmentOrientation: go.Link.OrientUpright,
                alignmentFocus: go.Spot.BottomCenter,
                textAlign: "center",
              })                        // this is a Link label
                .bind("text")
            );

        const nodeDataArray = [
          { key: "Alpha", loc: "0 0" },
          { key: "Beta", loc: "200 50" }
        ];
        const linkDataArray = [
          { from: "Alpha", to: "Beta", text: "a really long long long label" }
        ];
        diagram.model = new go.GraphLinksModel(nodeDataArray, linkDataArray);

      }

      window.addEventListener('DOMContentLoaded', init);
    </script>

    <div id="sample">
      <div id="myDiagramDiv" style="border: solid 1px black; width: 100%; height: 470px; background: whitesmoke"></div>
    </div>
  </div>
</body>

</html>
2

Thanks for providing the sample.

Did you mean something like:

              new go.TextBlock({
                segmentIndex: -1,
                segmentOrientation: go.Link.OrientUpright,
                alignmentFocus: go.Spot.BottomRight,
                textAlign: "center",
              })                        // this is a Link label
3

Thanks, that already helps.
Is there a built-in way to angle to label along the curve created between the last and previous to last segment?
Or would we have to compute the angle?

4

Sorry, yes, if you want an average angle opposite the two segments at the next-to-last point (i.e. point 2), that needs to be computed dynamically.

I haven’t tried this, but there is an undocumented method on the Link class that you could try overriding:

  /**
   * Dynamically compute the desired angle of a GraphObject along a segment of the route.
   * This method is only called when the GraphObject's {@link GraphObject.segmentOrientation} property value is
   * not {@link Orientation.None}.
   * @virtual
   * @param elt - The {@link GraphObject} being rotated.
   * @param orient - An {@link Orientation} that indicates how the angle should be computed.
   * @param angle - The angle of the segment of the route where the GraphObject is attached.
   * @returns The intended angle for the GraphObject, in degrees.
   */
  public computeAngle(elt: GraphObject, orient: Orientation, angle: number): number;
5

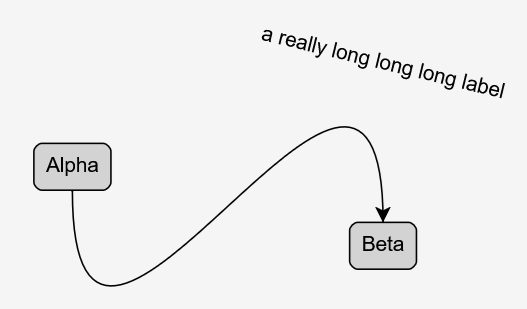

Hey, a Link.computeAngle override works, at least for this particular case.

image527×309 6.46 KB

class CustomLink extends go.Link {
  constructor(init) {
    super();
    if (init) Object.assign(this, init);
  }
  computeAngle(elt, orient, angle) {
    let a = super.computeAngle(elt, orient, angle);
    if (elt.segmentIndex === -1 && this.curve === go.Curve.Bezier && elt instanceof go.TextBlock) {
      const p1 = this.getPoint(1);
      const p2 = this.getPoint(2);
      const b = p2.directionPoint(p1);
      let r = ((a + b) / 2) - 90;
      if (r < 180) r += 360
      else if (r >= 360) r -= 360;
      return r;
    } else {
      return a;
    }
  }
}

        diagram.linkTemplate =
          new CustomLink({ curve: go.Link.Bezier, fromEndSegmentLength: 200, toEndSegmentLength: 200 })
            .add(
              new go.Shape(),                           // this is the link shape (the line)
              new go.Shape({ toArrow: "Standard" }),  // this is an arrowhead
              new go.TextBlock({
                segmentIndex: -1,
                segmentOrientation: go.Link.OrientUpright,
                segmentFraction: 0.5,
                textAlign: "center",
              })                        // this is a Link label
                .bind("text")
            );
6

Thanks for suggesting this.
Is computeAngle a new method with gojs v3?
Or is it just not part of the type definitions?

7

I don’t think it’s ever been in the d.ts file.
