Problem:
I have a select box and on change I get the selected option value, which contains a comma-separated string of node keys that should be visible (nodeKeysAreVisible=’key1;key2;key5…’)
$("#cbTailoringGroups").change(
function (event) {
nodeKeysAreVisible=$("#cbTailoringGroups").val();
diagram.requestUpdate();
diagram.rebuildParts();
//event.preventDefault();
}
);
The nodes (see JSON below) have a x-location and are grouped vertically (see screenshots):
The JSON looks like this:
{
"group": "Configuration Management",
"loc": "3342 0",
"phaseName": "Design Phase (PCP)",
"key": "CM-SOP-16",
"processStep": "System\/Component Review configuration set created"
},
My Approach:
For this purpose I set the opacity value to 1 in the node-template (see below) when the key is appears in the string, otherwise to zero:
// the node template describes how each Node should be constructed
diagram.nodeTemplate =
make(go.Node, "Auto", // the Shape automatically fits around the TextBlock
new go.Binding("opacity", "",
function (data) {
if (data.processStep === 'entfernen')
{
return 0;
}
else if ($("#cbTailoringGroups option:selected").text() == 'all')
{
return 1;
}
else if (nodeKeysAreVisible!==''&&nodeKeysAreVisible.indexOf(data.key)>-1)
{
return 1;
}
else
{
return 0;
}
return 1;
}
),
new go.Binding("location", "loc", go.Point.parse),
make(go.Shape, "RoundedRectangle", // use this kind of figure for the Shape
// bind Shape.fill to Node.data.color
{fill: 'white'}),
make(go.TextBlock,
{ margin: 3, height: 80, textAlign: "center", font: "10pt Arial" }, // some room around the text
// bind TextBlock.text to Node.data.key
new go.Binding("width", "",
function (data)
{
return (data.processStep==='entfernen') ? 0 : 100;
}
),
new go.Binding("text", "",
function (data)
{
return (data.processStep) ? data.processStep : data.key;
}
))
);
Problem with the approach:
The location binding is get lost when I change the option box and call diagram.rebuildParts().
All nodes are moving together after the select-box-change.
On diagram initialization is used isInitial=false – I saw there is s.th. like isOngoing=false but I do not know where to call it to prevent that the x-positions are destroyed?
Question:
How can I force that the nodes are still using their location “loc” from the JSON after calling “rebuildParts”?
Screenshots The problem with my approach:

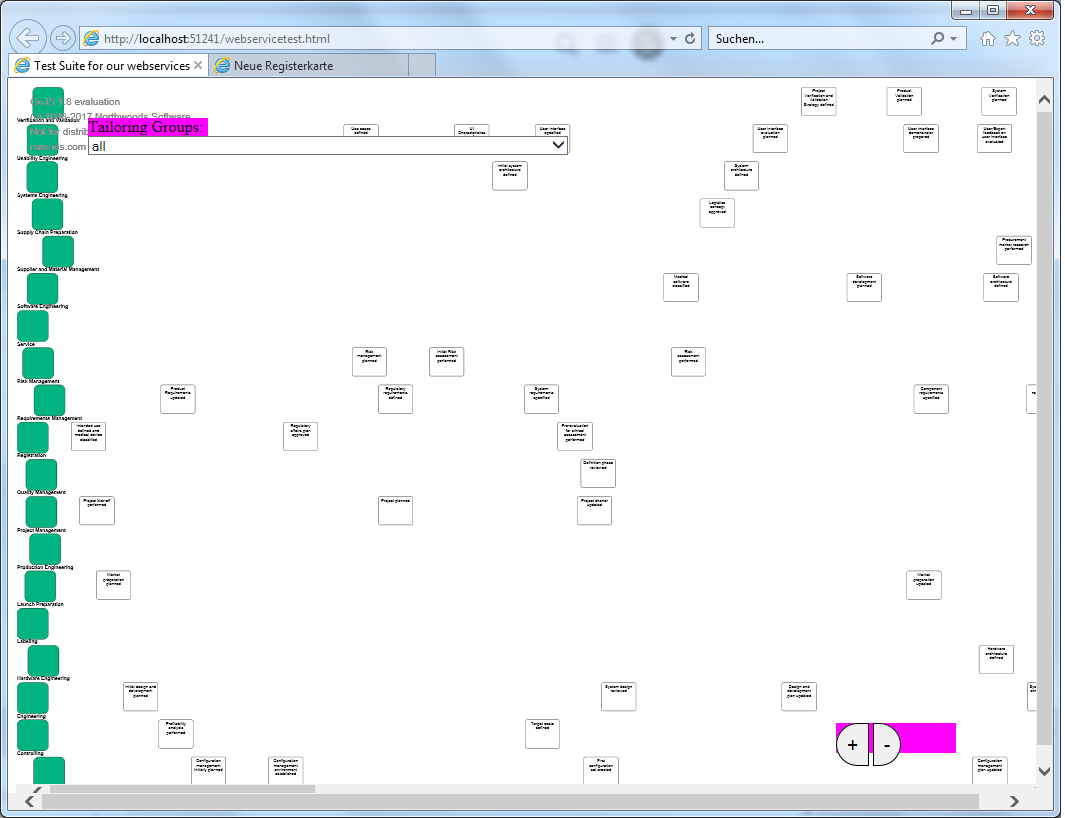

This is before selecting the combobox:

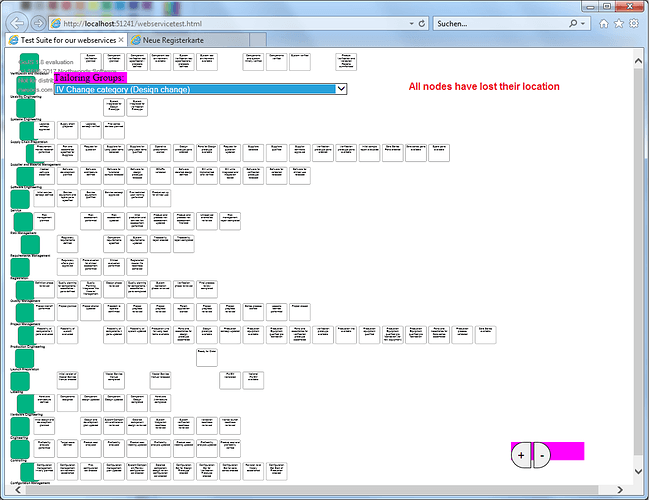

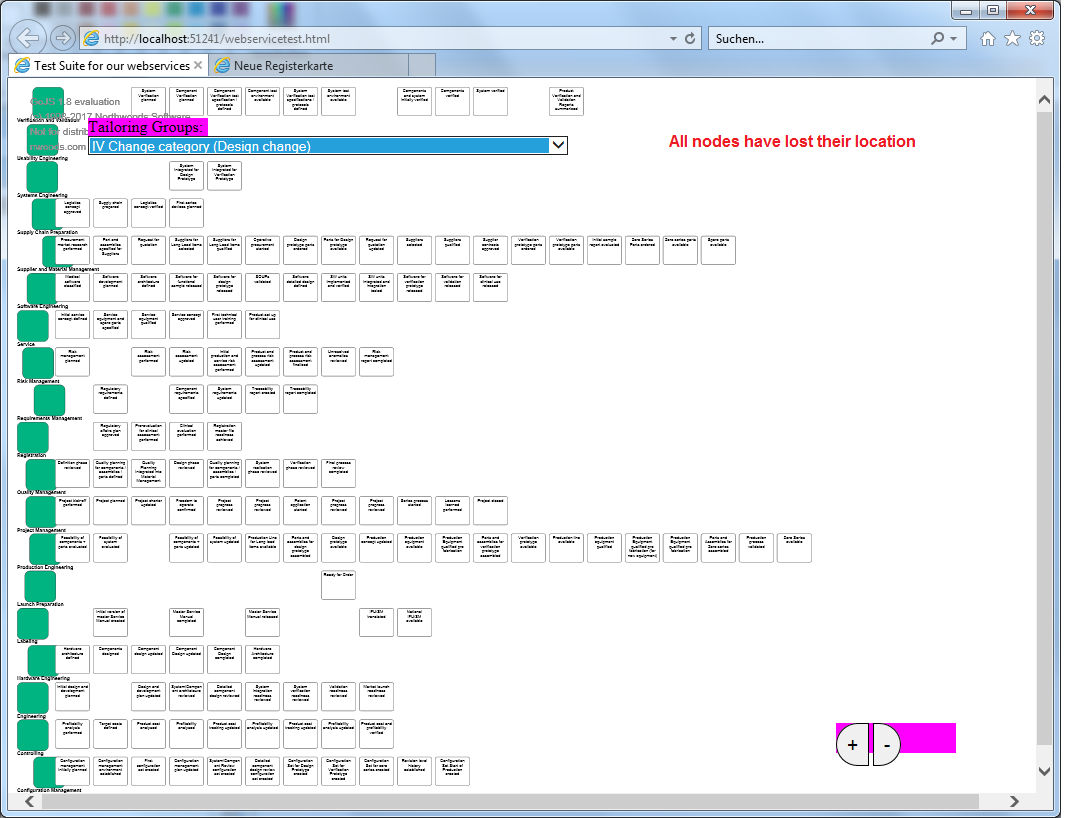

This is after i have selected the combobox - all nodes have lost their x-coordinate:
