Subtree Partial Alignment

GoXam
1

This is my flow, i’m used TreeLayout.

Before moved nodes :::

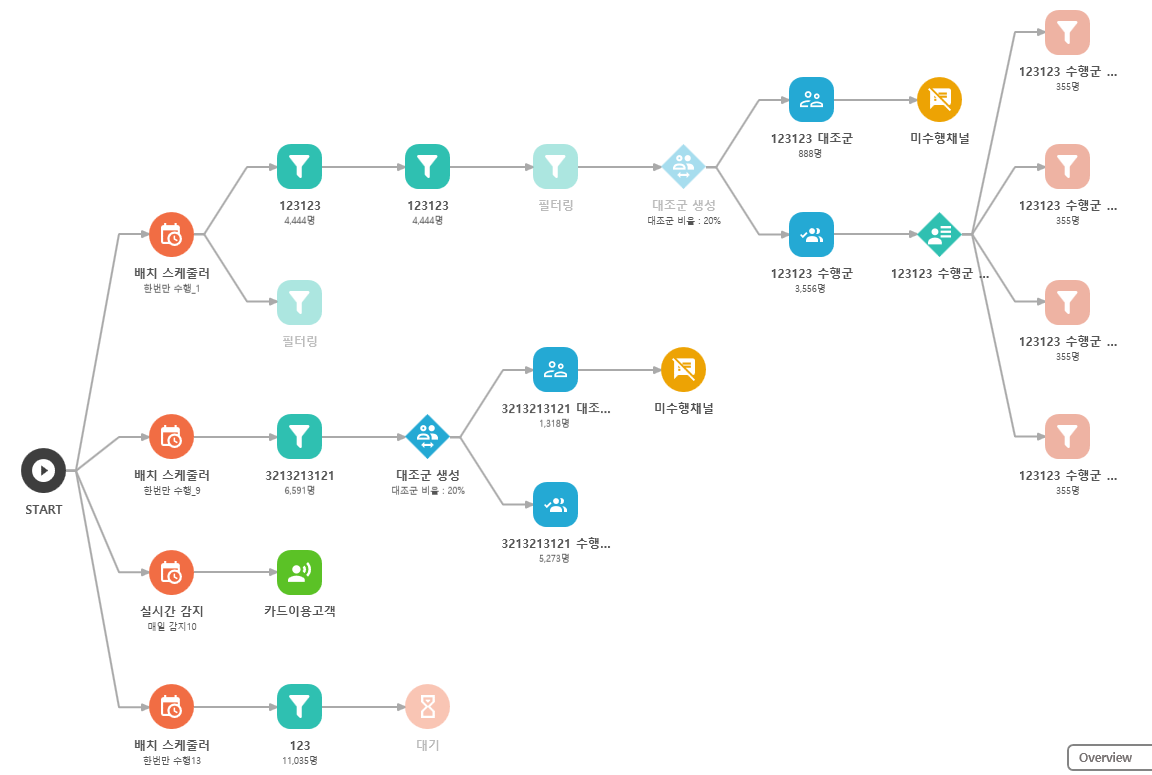

1
11152×775 59.4 KB

After movement :::

2
21153×781 66.6 KB

And I want to sort nodes that in the blue box, other nodes fixed.

3
31153×781 71.2 KB

expecting result :::

4
41167×755 64 KB

I’m used TreeLayout.DoLayout method.
Is there any way partial sort ?? Other nodes fixed.

I tried doLayout method parameter change.

result ▼

5
51220×810 65.8 KB

2

Precisely what happened when “movement::”?

3

sorry…

select nodes -> drag nodes

4

Are you calling TreeLayout.DoLayout with only the Nodes and Links that you want to be laid out again? Use TreeLayout.Arrangement set to TreeArrangement.FixedRoots so that the root nodes are not moved, and their children are arranged in subtrees from where those root nodes are.

5

1
11010×710 60 KB

2
21004×746 62.7 KB

Thanks! very helpful!

I’m missed Links that i want to be laid out again.
